DIY 10 MHz frequency standard

Post by JPLRMD »

Precisious 10 MHz frequency standard made into Starbucks Chocolate canee delivers sinewave signal 7V pp with 0.01 Hz resolution. The canee contains thermostated oscillator powered by DC supply 12V.

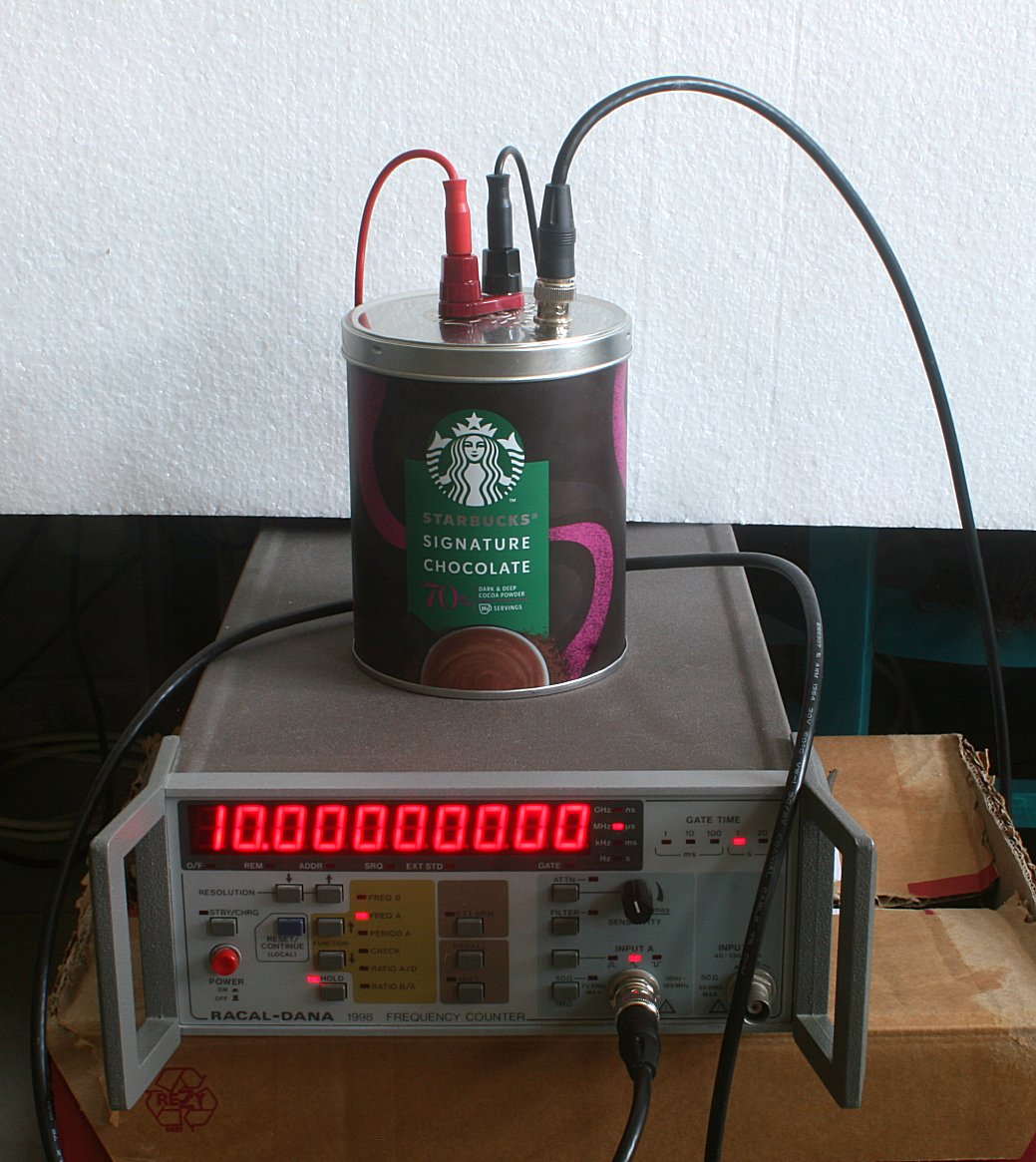

DiY Precisious 10MHz frequency standard
DiY Precisious 10MHz frequency standard
The Racal Dana counter (model 1998) is gated with 1 sec.
